Graphite Cutting Band Saw Machine work depends on continuous loop edges able to resist the soft yet highly abrasive nature of the stock without rapid dulling or clogging. Several edge styles address this challenge and influence how many passes an edge can complete before replacement becomes necessary.

Carbide tipped styles stand out because the hard tips withstand the fine particles that quickly erode ordinary steel. The tips stay sharp longer under the moderate force needed for this material and produce cleaner surfaces with less chipping at the exit side. Operators often pair these edges with higher surface speeds once the initial break in period ends. Steady positive feed keeps the tips engaged so they shear rather than rub and generate excess heat.

Grit coated styles offer another practical route. A continuous layer of hard particles bonded to the body clears dust while the narrow kerf reduces material loss. These edges run in either direction and maintain a consistent path through thick blocks. Because the abrasive surface does not rely on discrete teeth the risk of individual tip fracture drops. Shops processing large volumes of electrode material frequently keep grit styles on hand for rough dimensioning work.

Carbon steel styles remain available for lighter or intermittent tasks. They cost less at the start yet wear faster under continuous abrasion so they suit short runs or trial pieces. When used the speed must stay lower to avoid early burning of the tips. Regular inspection of the back edge and tooth form helps decide when replacement is due.

Pitch or particle spacing plays a direct role in dust clearance. Coarse spacing creates larger gullets that carry the fine powder away from the contact zone and prevent packing that would otherwise load the edge and raise friction. Finer spacing works for thinner plates where fewer particles are generated per pass. Matching the spacing to the cross section of the stock keeps the edge free and reduces the force required to advance.

Dry operation is essential for every style. Liquid fluids mixed with the fine powder form a dense paste that accelerates wear on guides bearings and the edge itself. Air extraction systems remove the airborne particles at the source and keep the working area clear. Proper extraction also protects the continuous loop from secondary abrasion caused by recirculated dust.

Tension and guide alignment support all edge types. Correct tension prevents lateral wander that would wear one side of the tips unevenly. Clean and properly spaced guides keep the loop tracking true so the full width of the edge engages the stock. A short visual check before each shift catches small deviations before they shorten service life.

Break in procedures further protect new edges. Running the first several passes at reduced force allows the tips or grit particles to form a stable working surface. After this period normal parameters can resume. Skipping the step often leads to early micro chipping and a shorter overall interval between changes.

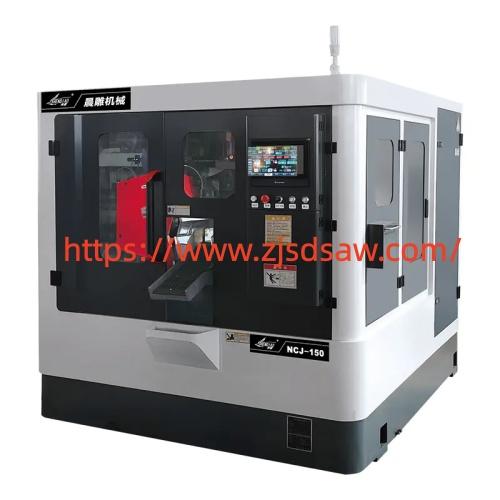

Chendiao incorporates stable tension systems and accessible guide adjustments that help operators apply these practices consistently. The same approach supports both carbide tipped and grit coated edges across a range of block sizes.

When edge selection pitch dry running and routine checks work together the continuous loop delivers predictable intervals between replacements and cleaner finished surfaces. For available configurations and related options visit https://www.zjsdsaw.com/
